Edge gateways for secure and reliable remote access

    Our IEC 62443-certified edge gateways provide secure, controlled access to OT assets and network zones. This allows suppliers to deliver efficient service while you maintain full control over the production environment.

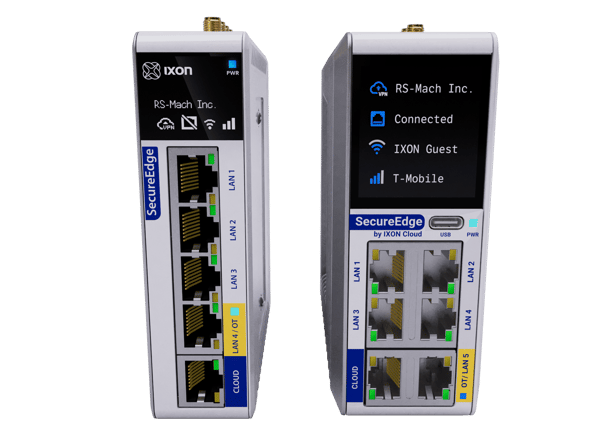

    SecureEdge gateways (2)-1

    Secure, compliant and easy to integrate

    Each feature is available

    For every factory network

    Whether you require deployment within a DMZ to route all traffic through existing firewalls, or prefer segmentation at the machine and line level, our edge gateways adapt to your infrastructure.

    Security compliance

    IEC 62443-4-2 certified

    Our edge gateways are designed with security in mind and built with a secure OS at the core. The SecureEdge gateways are one of the world’s first IEC 62443-4-2 certified industrial gateways.

    Advanced user control

    Easy collaboration, full control

    Empower your technical team and suppliers to perform remote maintenance with ease. Our gateways provide secure access to specific assets, ensuring fast troubleshooting and minimal downtime, while you maintain full control.

    Get to know our gateways

    IXON_Gateway_Slim_V20

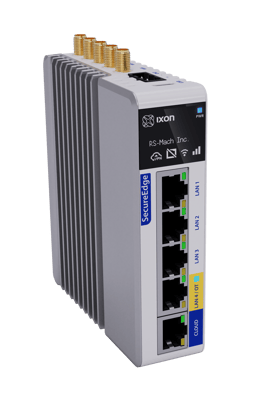

    SecureEdge

    The SecureEdge is a compact industrial edge gateway for secure and easy machine connectivity.

      User manual & specifications
     Datasheet
     CE Declaration
      DXF drawing
      STEP files

    IXON_Gateway_Slim_V19

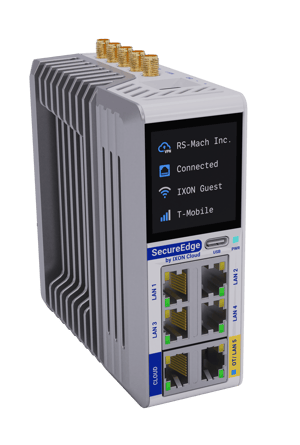

    SecureEdge Pro

    The SecureEdge Pro offers extra computing power, expandable storage and Docker support.

     User manual & specifications
     Datasheet
     CE Declaration
     DXF drawing
      STEP files

    SecureEdge gateway models

    Both gateways share the same security philosophy. The SecureEdge Pro offers additional performance, scalability, and integration capabilities.



      SecureEdge SecureEdge Pro
      IX5000 IX5005 IX5010 IX5015 IX6000 IX6005 IX6010 IX6015
    Wi-Fi Client & Hotspot
    4G Global
    GPS
    Ethernet ports (all 1Gbps) 3 x LAN, 1 x WAN (factory network/cloud)
    1x configurable port for LAN or factory network    		 4 x LAN, 1 x WAN (factory network/cloud)
    1x configurable port for LAN or factory network
    CPU Quad-Core ARM Cortex-A53 1.8 GHz Quad-Core ARM Cortex-A55 1.8Ghz + NPU
    Memory 1GB LPDDR4 4GB LPDDR4
    Storage 32 GB eMMC in pSLC-mode for reliability, with 5GB of user space
    Expandable storage n/a Yes, PCIe SSD in M.2
    VPN speed (TCP/UDP) Approx. 30 Mbit/s Approx. 30 Mbit/s
    Docker apps n/a Yes
    Touchscreen 0.96" monochrome 1.54" full color
    Other hardware USB 2.0 via USB-C connector, eSIM, and TPM 2.0 USB 3.0 (Type C), eSIM, and TPM 2.0
    Dimensions (excl. DIN rail mount) 112x101x31 mm (H x D x W) 111x111x45 mm (H x D x W)



    Secure your edge. Stay in control.
